Cooling 80 x 80 x 10 mm case fan... doesn't seem to exist?

[Poblopuablo]

Velka3 uses some and velka sells them on their site.



[Rich Tea]

Bought the Akasa. I had exceeding low expectations so maybe thats the reason I am pleasantly suprised.
At 0% PWMs they spin at 650 RPM and are basically silent. At load they aren't any louder than the stock 92mm GPU fans.
Wished they stop spinning at 0% PWM like the stock fans did, but since they are silent I don't mind and the idle GPU temps are now 27c instead of 57c.



[Stevo_]

Bought the Akasa. I had exceeding low expectations so maybe thats the reason I am pleasantly suprised.
At 0% PWMs they spin at 650 RPM and are basically silent. At load they aren't any louder than the stock 92mm GPU fans.
Wished they stop spinning at 0% PWM like the stock fans did, but since they are silent I don't mind and the idle GPU temps are now 27c instead of 57c.

I had the same experience with the Akasa 80x10 fans despite the shit talking about them. The others I tried at the time(NoiseBlockers and one other) both exhibited an annoying PWM buzz noise.



[smitty2k1]

I had the same experience with the Akasa 80x10 fans despite the shit talking about them. The others I tried at the time(NoiseBlockers and one other) both exhibited an annoying PWM buzz noise.

I'm very unimpressed with the 80x15 noideblockrrs. I found the 80x15 coolermaster fans much better but they come in about 16mm thick.



[Stevo_]

I'm very unimpressed with the 80x15 noideblockrrs. I found the 80x15 coolermaster fans much better but they come in about 16mm thick.

Yeah the other one, just checked were Silenx also ~16mm, gold color, and quiet on an LNA cable but 3-pin



[Poblopuablo]

https://www.velkase.com/products/th92p0m2qn0e2axktlfm0k0wh6u0l4-3hgzz Currently out of stock. @VELKASE Michael when will these be in stock?



[Poblopuablo]

Also, just found a pwm option https://item.taobao.com/item.htm?sp...yH6Gu&id=579565703795&ns=1&abbucket=12#detail



[smitty2k1]

Yeah the other one, just checked were Silenx also ~16mm, gold color, and quiet on an LNA cable but 3-pin

At first I was hesitant about the Coolermaster because they were also 3pin instead of PWM, but motherboard control is so good these days I didn't find any issues setting the fan curve just how I wanted it.



[protocolsix]

I've been looking at slim 80mm x 10mm fan options:

• ID Cooling: https://www.idcooling.com/Product/detail/id/393/name/NO-8010-PWM
• GDSTIME: Amazon.com: GDSTIME Quiet 80mm Fan, 12V 3PIN 80mm x 80mm x 10mm Brushless DC Fan for CPU Coolers : Electronics

The ID Cooling fan sounds promising, any experience with these?

* Mod edit: updated amazon link



[Gingerbeer]

Akasa do a 80mm x 10.8mm model



[rcodi]

Scythe has a model as well: https://www.superbuy.com/en/page/bu...ali_trackid=2:mm_117358474_33384934_118778578

I have a few on order and will report back in a few weeks when they're here.



[rcodi]

Update on the Scythe fans after I finally got around to putting them in. Out of the three I bought one of them had bearing noise between 20-40% speed so I'd order an extra fan or two since they're cheap anyway. The two good fans are nice and quiet with a Fan Control auto profile at 25-40%, very happy with them.



[Skibidi Toilet GPS]

Standalone 80 x 80 x 10 mm 12 VDC axial brushless fans

	Sources: 1) https://www.cuidevices.com/product/discontinued/thermal-management/dc-fans/axial-fans/cfm-8010-13-22 2) https://www.cuidevices.com/product/discontinued/thermal- management/dc-fans/axial-fans/cfm-8010-13-20 3) https://www.cuidevices.com/product/discontinued/cfm-80-series.pdf Notes: Three variants exist: 4-pin (CFM-8010-13-22), CFM-8010-13-20 (3-pin) Parts ending with -10 are 2-pin variants
Fan Name	CUI CFM-8010-13-22/20
Motor Bearing	Dual ball
Motor Speed	3300 RPM
Static Pressure	0.11 inch H2O
Airflow Rating	33.61 CFM
Noise Rating	38.2 dBA
Power Rating	12 V, 0.24 A, 2.88 W
Mean Time to Failure	70,000 hours @ 45 C, 15~65% relative humidity
Where to Buy	Mouser, DigiKey, ELECOK

	Sources: 1) https://www.newegg.com/nidec-u80r12mua-57-fans/p/1YF-002N-00138 2) https://www.aliexpress.com/item/2251832548615099.html 3) https://www.ruten.com.tw/item/show?22348286266605 4) https://www.ebay.com/itm/256483830752 Notes: Comes in two different colors: black and white Differs in connectors as well: 2-pin and 3-pin The Z991 variant might not be the same as the J57 variant.
Fan Name	Nidec UltraFlo U80R12MUA-57 Z991/J57
Motor Bearing	Sleeve
Motor Speed	2500 RPM
Static Pressure	? inch H2O
Airflow Rating	29.1 CFM
Noise Rating	25 dBA
Power Rating	12 V, 0.25 A, 3 W
Mean Time to Failure	50,000 hours @ ? C, ?% relative humidity
Where to Buy	Amazon, eBay, AliExpress, Newegg, PcHub, Taobao, ELECOK, Ruten

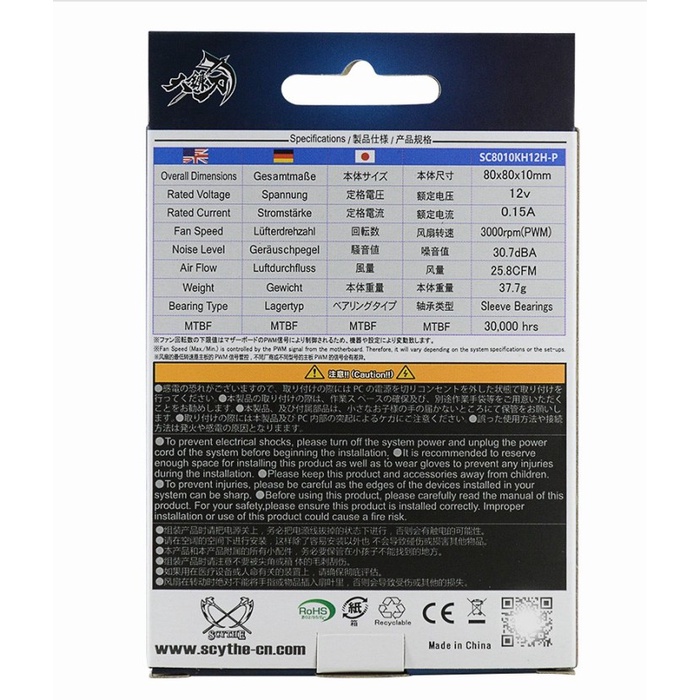

	Sources: 1) https://down-id.img.susercontent.com/file/id-11134201-7qula-ljs5rukyeb6y42 2) http://www.scythe-cn.com/product/cooler/sc-jt8039-p.html 3) http://www.scythe-cn.com/product/cooler/sc-jt8039.html Notes: Bundled with the Scythe Jitte SC-JT8039 and Scythe Jitte Plus SC-JT8039-P. Can be bought separately. This is 4-pin PWM only.
Fan Name	Scythe Kaze-Hachi, SC8010KH12H-P
Motor Bearing	Sleeve
Motor Speed	3000 RPM
Static Pressure	? inch H2O
Airflow Rating	25.8 CFM
Noise Rating	30.7 dBA
Power Rating	12 V, 0.15 A, 1.8 W
Mean Time to Failure	30,000 hours @ ? C, ?% relative humidity
Where to Buy	AliExpress, Taobao

	Sources: 1) https://www.aliexpress.com/item/3256805489642006.html 2) https://www.everflowtech.com/upload/files/2019產品目錄.pdf 3) https://www.ebay.com/itm/256092244146 Notes: This is 4-pin PWM only.
Fan Name	Everflow R128010SU
Motor Bearing	Sleeve, claims to be 'two ball bearing' in datasheet
Motor Speed	4200 RPM
Static Pressure	0.1409 inch H2O
Airflow Rating	33.46 CFM
Noise Rating	36.5 dBA
Power Rating	12 V, 0.35 A, 4.2 W
Mean Time to Failure	? hours @ ? C, ?% relative humidity
Where to Buy	eBay, AliExpress, Taobao, Newegg, Ruten

	Sources: 1) https://www.aliexpress.com/item/3256805489642006.html 2) https://www.ebay.com/itm/144939847598 2) http://www.suntai-fan.com.tw/products_all3.php?TVcode=3&TVcode1=58&TVcode2=51&TK511=2 Note: Sold as a 'Sutai' fan, the Suntai name doesn't seem to be commonly used. This is 4-pin PWM only.
Fan Name	Suntai 8010BVM-M1, AD208010MBPA01
Motor Bearing	Dual ball
Motor Speed	2500 RPM
Static Pressure	0.051 inch H2O
Airflow Rating	17.8 CFM
Noise Rating	28.6 dBA
Power Rating	12 V, 0.14 A, 1.68 W
Mean Time to Failure	? hours @ ? C, ?% relative humidity
Where to Buy	eBay, AliExpress

	Sources: 1) https://www.amazon.com/A8010-20RA-2JN-F1-12V-0-25A-8010-Silent/dp/B094H6P79H Notes: This is a rebadged Fly Upwards Electron DF0801012SELN. Not to be confused with the 5 V variant that has the same name. Three variants exist: 2-pin, 3-pin, and 4-pin
Fan Name	Cooler Master A8010-20RA-2JN-F1
Motor Bearing	Sleeve?
Motor Speed	3000 RPM
Static Pressure	? inch H2O
Airflow Rating	20 CFM
Noise Rating	20 dBA
Power Rating	12 V, 0.25 A, 3 W
Mean Time to Failure	? hours @ ? C, ?% relative humidity
Where to Buy	Amazon, eBay, AliExpress, Taobao, Ruten

	Sources: 1) https://www.amazon.com/A8010-27RB-3AN-F1-80x80x10mm-2500RPM-21-3CFM-Cooling/dp/B09KYH3J81 Notes: This is a rebadged Fly Upwards Electron DF0810012SELN. Two variants exist: 2-pin and 3-pin
Fan Name	Cooler Master A8010-27RB-3AN-F1
Motor Bearing	Sleeve?
Motor Speed	2500 RPM
Static Pressure	? inch H2O
Airflow Rating	21.3 CFM
Noise Rating	25 dBA
Power Rating	12 V, 0.25 A, 3 W
Mean Time to Failure	? hours @ ? C, ?% relative humidity
Where to Buy	Amazon, eBay, AliExpress, Taobao, PcHub, Ruten

	Sources: 1) https://www.amazon.com/Zyvpee-80x80x10mm-A8010-27CB-3AN-F1-DF0801012SELN-Cooling/dp/B085ZLT429 2) https://www.ebay.com/itm/386873393962 Notes: This is a rebadged Fly Upwards Electron DF0801012SELN or DF0801012B2LN. Two variants exist: 3-pin (DF0801012SELN) and 2-pin (DF0801012B2LN)
Fan Name	Cooler Master A8010-27CB-3AN-F1
Motor Bearing	Sleeve?
Motor Speed	? RPM
Static Pressure	? inch H2O
Airflow Rating	? CFM
Noise Rating	? dBA
Power Rating	12 V, 0.20 A, 2.4 W
Mean Time to Failure	? hours @ ? C, ?% relative humidity
Where to Buy	Amazon, eBay, AliExpress, Taobao, PcHub, Ruten

	Sources: 1) https://www.ebay.com/itm/385895433772 2) https://www.aliexpress.com/item/3256803619660551.html Notes: Unable to find the original manufacturer of the fan, part # is A8010M12S Two variants exist: 3-pin and 2-pin
Fan Name	Cooler Master A8010-25R8-2AN-F1
Motor Bearing	Sleeve?
Motor Speed	? RPM
Static Pressure	? inch H2O
Airflow Rating	? CFM
Noise Rating	? dBA
Power Rating	12 V, 0.20 A, 2.4 W
Mean Time to Failure	? hours @ ? C, ?% relative humidity
Where to Buy	Amazon, eBay, AliExpress, Newegg, Taobao, PcHub, Ruten, ELECOK

	Sources: 1) https://www.aliexpress.com/item/3256805063961860.html 2) https://www.idcooling.com/product/detail?id=393&name=NO-8010-PWM 3) https://world.taobao.com/item/603140376517.htm Notes: Unable to find the original manufacturer of the fan, part # is ID8010M12S These are 4-pin PWM only. Comes in three different colors: black, white, and two-tone black and white
Fan Name	ID-Cooling NO-8010-PWM, ID8010M12S
Motor Bearing	Sleeve
Motor Speed	3000 RPM
Static Pressure	0.0826 inch H2O
Airflow Rating	25.4 CFM
Noise Rating	27.8 dBA
Power Rating	12 V, 0.14 A, 1.68 W
Mean Time to Failure	? hours @ ? C, ?% relative humidity
Where to Buy	AliExpress, Newegg, Taobao, eBay

	Sources: 1) https://www.akasa.co.uk/search.php?seed=AK-FN076 2) https://a4.pbase.com/o9/95/332395/1/159127577.AYuOOOGk.jpg 3) http://kingmot.m.yxcseo.com/pd.jsp?pid=29 Notes: This is a rebadged YoungLin DFS801012H. This is 4-pin PWM only.
Fan Name	Akasa Slimfan 80mm, AK-FN076
Motor Bearing	Sleeve
Motor Speed	3000 RPM
Static Pressure	0.0712 inch H2O
Airflow Rating	26.53 CFM
Noise Rating	27.09 dBA
Power Rating	12 V, 0.15 A, 1.8 W (Akasa claims the amperage to be 0.19 A)
Mean Time to Failure	40,000 hours @ ? C, ?% relative humidity
Where to Buy	Amazon, eBay

Non-standalone 80 x 80 x 10 mm 12 VDC axial brushless fans

	Sources: 1) http://www.scythe-sub.sakura.ne.jp/cooler/sckdt-1100.html 2) http://www.scythe-sub.sakura.ne.jp/cooler/kodati.html 3) http://www.scythe-sub.sakura.ne.jp/cooler/kozuti.html 4) https://silentpcreview.com/scythe-kozuti-low-profile-cpu-heatsink/ 5) https://www.reeven.com/vanxie-rc-0801 6) https://silentpcreview.com/scythe-big-shuriken-2-reeven-vanxie-cpu-coolers/ Notes: Bundled with the Scythe Kozuti SCKZT-1000 and the Kodati SCKDT-1000/1100 The Reeven RY8010S33C-P is a rebadge. It was bundled with the Reeven Vanxie RC-0801. These are 4-pin PWM only.
Fan Name	Scythe Slip Stream Slim 80, SY8010SL12M-P
Motor Bearing	Sleeve
Motor Speed	3300 RPM
Static Pressure	0.078 inch H2O
Airflow Rating	24.82 CFM
Noise Rating	32.5 dBA
Power Rating	12 V, 0.20 A, 2.4 W
Mean Time to Failure	? hours @ ? C, ?% relative humidity
Where to Buy	Yahoo! Auctions, eBay



[ignsvn]

Standalone 80 x 80 x 10 mm 12 VDC axial brushless fans

	Sources: 1) https://www.cuidevices.com/product/discontinued/thermal-management/dc-fans/axial-fans/cfm-8010-13-22 2) https://www.cuidevices.com/product/discontinued/thermal- management/dc-fans/axial-fans/cfm-8010-13-20 3) https://www.cuidevices.com/product/discontinued/cfm-80-series.pdf Notes: Three variants exist: 4-pin (CFM-8010-13-22), CFM-8010-13-20 (3-pin) Parts ending with -10 are 2-pin variants
Fan Name	CUI CFM-8010-13-22/20
Motor Bearing	Dual ball
Motor Speed	3300 RPM
Static Pressure	0.11 inch H2O
Airflow Rating	33.61 CFM
Noise Rating	38.2 dBA
Power Rating	12 V, 0.24 A, 2.88 W
Mean Time to Failure	70,000 hours @ 45 C, 15~65% relative humidity
Where to Buy	Mouser, DigiKey, ELECOK

	Sources: 1) https://www.newegg.com/nidec-u80r12mua-57-fans/p/1YF-002N-00138 2) https://www.aliexpress.com/item/2251832548615099.html 3) https://www.ruten.com.tw/item/show?22348286266605 4) https://www.ebay.com/itm/256483830752 Notes: Comes in two different colors: black and white Differs in connectors as well: 2-pin and 3-pin The Z991 variant might not be the same as the J57 variant.
Fan Name	Nidec UltraFlo U80R12MUA-57 Z991/J57
Motor Bearing	Sleeve
Motor Speed	2500 RPM
Static Pressure	? inch H2O
Airflow Rating	29.1 CFM
Noise Rating	25 dBA
Power Rating	12 V, 0.25 A, 3 W
Mean Time to Failure	50,000 hours @ ? C, ?% relative humidity
Where to Buy	Amazon, eBay, AliExpress, Newegg, PcHub, Taobao, ELECOK, Ruten

	Sources: 1) https://down-id.img.susercontent.com/file/id-11134201-7qula-ljs5rukyeb6y42 2) http://www.scythe-cn.com/product/cooler/sc-jt8039-p.html 3) http://www.scythe-cn.com/product/cooler/sc-jt8039.html Notes: Bundled with the Scythe Jitte SC-JT8039 and Scythe Jitte Plus SC-JT8039-P. Can be bought separately. This is 4-pin PWM only.
Fan Name	Scythe Kaze-Hachi, SC8010KH12H-P
Motor Bearing	Sleeve
Motor Speed	3000 RPM
Static Pressure	? inch H2O
Airflow Rating	25.8 CFM
Noise Rating	30.7 dBA
Power Rating	12 V, 0.15 A, 1.8 W
Mean Time to Failure	30,000 hours @ ? C, ?% relative humidity
Where to Buy	AliExpress, Taobao

	Sources: 1) https://www.aliexpress.com/item/3256805489642006.html 2) https://www.everflowtech.com/upload/files/2019產品目錄.pdf 3) https://www.ebay.com/itm/256092244146 Notes: This is 4-pin PWM only.
Fan Name	Everflow R128010SU
Motor Bearing	Sleeve, claims to be 'two ball bearing' in datasheet
Motor Speed	4200 RPM
Static Pressure	0.1409 inch H2O
Airflow Rating	33.46 CFM
Noise Rating	36.5 dBA
Power Rating	12 V, 0.35 A, 4.2 W
Mean Time to Failure	? hours @ ? C, ?% relative humidity
Where to Buy	eBay, AliExpress, Taobao, Newegg, Ruten

	Sources: 1) https://www.aliexpress.com/item/3256805489642006.html 2) https://www.ebay.com/itm/144939847598 2) http://www.suntai-fan.com.tw/products_all3.php?TVcode=3&TVcode1=58&TVcode2=51&TK511=2 Note: Sold as a 'Sutai' fan, the Suntai name doesn't seem to be commonly used. This is 4-pin PWM only.
Fan Name	Suntai 8010BVM-M1, AD208010MBPA01
Motor Bearing	Dual ball
Motor Speed	2500 RPM
Static Pressure	0.051 inch H2O
Airflow Rating	17.8 CFM
Noise Rating	28.6 dBA
Power Rating	12 V, 0.14 A, 1.68 W
Mean Time to Failure	? hours @ ? C, ?% relative humidity
Where to Buy	eBay, AliExpress

	Sources: 1) https://www.amazon.com/A8010-20RA-2JN-F1-12V-0-25A-8010-Silent/dp/B094H6P79H Notes: This is a rebadged Fly Upwards Electron DF0801012SELN. Not to be confused with the 5 V variant that has the same name. Three variants exist: 2-pin, 3-pin, and 4-pin
Fan Name	Cooler Master A8010-20RA-2JN-F1
Motor Bearing	Sleeve?
Motor Speed	3000 RPM
Static Pressure	? inch H2O
Airflow Rating	20 CFM
Noise Rating	20 dBA
Power Rating	12 V, 0.25 A, 3 W
Mean Time to Failure	? hours @ ? C, ?% relative humidity
Where to Buy	Amazon, eBay, AliExpress, Taobao, Ruten

	Sources: 1) https://www.amazon.com/A8010-27RB-3AN-F1-80x80x10mm-2500RPM-21-3CFM-Cooling/dp/B09KYH3J81 Notes: This is a rebadged Fly Upwards Electron DF0810012SELN. Two variants exist: 2-pin and 3-pin
Fan Name	Cooler Master A8010-27RB-3AN-F1
Motor Bearing	Sleeve?
Motor Speed	2500 RPM
Static Pressure	? inch H2O
Airflow Rating	21.3 CFM
Noise Rating	25 dBA
Power Rating	12 V, 0.25 A, 3 W
Mean Time to Failure	? hours @ ? C, ?% relative humidity
Where to Buy	Amazon, eBay, AliExpress, Taobao, PcHub, Ruten

	Sources: 1) https://www.amazon.com/Zyvpee-80x80x10mm-A8010-27CB-3AN-F1-DF0801012SELN-Cooling/dp/B085ZLT429 2) https://www.ebay.com/itm/386873393962 Notes: This is a rebadged Fly Upwards Electron DF0801012SELN or DF0801012B2LN. Two variants exist: 3-pin (DF0801012SELN) and 2-pin (DF0801012B2LN)
Fan Name	Cooler Master A8010-27CB-3AN-F1
Motor Bearing	Sleeve?
Motor Speed	? RPM
Static Pressure	? inch H2O
Airflow Rating	? CFM
Noise Rating	? dBA
Power Rating	12 V, 0.20 A, 2.4 W
Mean Time to Failure	? hours @ ? C, ?% relative humidity
Where to Buy	Amazon, eBay, AliExpress, Taobao, PcHub, Ruten

	Sources: 1) https://www.ebay.com/itm/385895433772 2) https://www.aliexpress.com/item/3256803619660551.html Notes: Unable to find the original manufacturer of the fan, part # is A8010M12S Two variants exist: 3-pin and 2-pin
Fan Name	Cooler Master A8010-25R8-2AN-F1
Motor Bearing	Sleeve?
Motor Speed	? RPM
Static Pressure	? inch H2O
Airflow Rating	? CFM
Noise Rating	? dBA
Power Rating	12 V, 0.20 A, 2.4 W
Mean Time to Failure	? hours @ ? C, ?% relative humidity
Where to Buy	Amazon, eBay, AliExpress, Newegg, Taobao, PcHub, Ruten, ELECOK

	Sources: 1) https://www.aliexpress.com/item/3256805063961860.html 2) https://www.idcooling.com/product/detail?id=393&name=NO-8010-PWM 3) https://world.taobao.com/item/603140376517.htm Notes: Unable to find the original manufacturer of the fan, part # is ID8010M12S These are 4-pin PWM only. Comes in three different colors: black, white, and two-tone black and white
Fan Name	ID-Cooling NO-8010-PWM, ID8010M12S
Motor Bearing	Sleeve
Motor Speed	3000 RPM
Static Pressure	0.0826 inch H2O
Airflow Rating	25.4 CFM
Noise Rating	27.8 dBA
Power Rating	12 V, 0.14 A, 1.68 W
Mean Time to Failure	? hours @ ? C, ?% relative humidity
Where to Buy	AliExpress, Newegg, Taobao, eBay

	Sources: 1) https://www.akasa.co.uk/search.php?seed=AK-FN076 2) https://a4.pbase.com/o9/95/332395/1/159127577.AYuOOOGk.jpg 3) http://kingmot.m.yxcseo.com/pd.jsp?pid=29 Notes: This is a rebadged YoungLin DFS801012H. This is 4-pin PWM only.
Fan Name	Akasa Slimfan 80mm, AK-FN076
Motor Bearing	Sleeve
Motor Speed	3000 RPM
Static Pressure	0.0712 inch H2O
Airflow Rating	26.53 CFM
Noise Rating	27.09 dBA
Power Rating	12 V, 0.15 A, 1.8 W (Akasa claims the amperage to be 0.19 A)
Mean Time to Failure	40,000 hours @ ? C, ?% relative humidity
Where to Buy	Amazon, eBay

Non-standalone 80 x 80 x 10 mm 12 VDC axial brushless fans

	Sources: 1) http://www.scythe-sub.sakura.ne.jp/cooler/sckdt-1100.html 2) http://www.scythe-sub.sakura.ne.jp/cooler/kodati.html 3) http://www.scythe-sub.sakura.ne.jp/cooler/kozuti.html 4) https://silentpcreview.com/scythe-kozuti-low-profile-cpu-heatsink/ 5) https://www.reeven.com/vanxie-rc-0801 6) https://silentpcreview.com/scythe-big-shuriken-2-reeven-vanxie-cpu-coolers/ Notes: Bundled with the Scythe Kozuti SCKZT-1000 and the Kodati SCKDT-1000/1100 The Reeven RY8010S33C-P is a rebadge. It was bundled with the Reeven Vanxie RC-0801. These are 4-pin PWM only.
Fan Name	Scythe Slip Stream Slim 80, SY8010SL12M-P
Motor Bearing	Sleeve
Motor Speed	3300 RPM
Static Pressure	0.078 inch H2O
Airflow Rating	24.82 CFM
Noise Rating	32.5 dBA
Power Rating	12 V, 0.20 A, 2.4 W
Mean Time to Failure	? hours @ ? C, ?% relative humidity
Where to Buy	Yahoo! Auctions, eBay

Whoa that's a nice resource. Thank you!



[Skibidi Toilet GPS]

Standalone 80 x 80 x 10 mm 12 VDC axial brushless fans - part 2

	Sources: 1) https://www.mouser.com/ProductDetai...DON%2BiRg9JYQeP2B2xODhhM73uwkzN/Th3o8FtKPwQ== 2) https://www.mouser.com/pdfdocs/Aavid-thermal-fans.pdf Notes: This is 4-pin PWM only.
Fan Name	Aavid Superior PSAD18010BH-MF00
Motor Bearing	Dual ball
Motor Speed	3300 RPM
Static Pressure	0.11 inch H2O
Airflow Rating	33.6 CFM
Noise Rating	36 dBA
Power Rating	12 V, 0.24 A, 2.88 W
Mean Time to Failure	70,000 hours @ 45 C, 15~60% relative humidity
Where to Buy	Mouser, DigiKey, RS, Ersa

	Sources: 1) https://www.ebay.com/itm/155327411880 2) https://www.sunon.com/eu/MANAGE/Docs/WEBCONT/Files/1236/DC Fan_20240630(255-E)_s.pdf Notes: Not listed in Sunon's product catalog, seems to be an off-roadmap model. This is 2-pin only.
Fan Name	Sunon MagLev GF80101V1-000U-A99
Motor Bearing	Vapo
Motor Speed	? RPM
Static Pressure	? inch H2O
Airflow Rating	? CFM
Noise Rating	? dBA
Power Rating	12 V, 0.084 A, 1.01 W
Mean Time to Failure	? hours @ ? C, ?% relative humidity
Where to Buy	eBay

	Sources: 1) https://www.aliexpress.com/item/1005004857822496.html 2) https://www.everflowtech.com/upload/files/2019產品目錄.pdf Notes: This is 4-pin PWM only.
Fan Name	Everflow R128010BU
Motor Bearing	Ball
Motor Speed	4200 RPM
Static Pressure	0.1409 inch H2O
Airflow Rating	33.46 CFM
Noise Rating	36.5 dBA
Power Rating	12 V, 0.35 A, 4.2 W
Mean Time to Failure	50,000 hours @ ? C, ?% relative humidity
Where to Buy	AliExpress, eBay, Amazon, Newegg, Taobao,

	Sources: 1) https://www.aliexpress.com/i/32860697460.html 2) https://www.newegg.com/p/1DR-002T-0...TAtItdMWGoPF4SQzeeQY4dlpKvDE_lf-pqbJrR9I4Wq5h 3) https://www.pchub.com/evercool-t128...fa95ar-12v035a-sq80x80x10mm-100x4wx4p-p170680 Notes: Seems to be an R128010BU with transparent fan blades. Backlit with blue LEDs? This is 4-pin PWM only.
Fan Name	Everflow T128010DU
Motor Bearing	Dual ball?
Motor Speed	4200 RPM
Static Pressure	0.1409 inch H2O
Airflow Rating	33.46 CFM
Noise Rating	36.5 dBA
Power Rating	12 V, 0.35 A, 4.2 W
Mean Time to Failure	? hours @ ? C, ?% relative humidity
Where to Buy	AliExpress, Amazon, PcHub, Newegg, ELECOK, Ruten, Taobao

Unobtainable 80 x 80 x 10 mm 12 VDC axial brushless fans
Jamicon: https://jamicon.teapo.com/upload/Fan/202006201527040.pdf
Yate Loon: https://www.yateloon.com/en/product-303114/DC-FAN-SERIES-80x80x10.html
Titan: https://www.titan-cd.com/en/product/TFD-8010xxxx.html
Evercool: https://symmetron.ua/image/catalog/2023/evercool_2023.pdf



[Skibidi Toilet GPS]

Speculation
Based on the specifications found here https://www.amazon.com/A8010-27CB-3AN-F1-2500RPM-23-3CFM-80X80X10MM-Cooling/dp/B0BR3KSG7T, rebadges of the Fly Upwards Electron DF0801012SELN have the following ratings:

• Maximum motor speed is 2500 RPM, 800 RPM seems to be minimum for PWM variants.
• Maximum air flow is 23.3 CFM.
• Sound is rated at 28 dBA.

They look believable, but I still think someone should test all of these obscure fans with incomplete specs just to be sure.

Shenzhen XinYuJie: https://www.alibaba.com/product-detail/8010-8cm-80mm-IP55-axial-fan_62580907583.html
The Velkase VF-8010-PWM is likely a rebadge of the Shenzhen XinYuJie XYJ12B8010L, XYJ12B8010M, or XYJ12B8010H. If my eyes aren't lying, this image from this imgur album https://imgur.com/gallery/velka-3-build-kBlawQW partially exposes the VF-8010-PWM fans' logo. The design and color of its logo is nearly a 1:1 match with the exception of the blurry labels. I also noticed that all XinYuJie fans with ball bearings are given a two-tone white and sky blue logo, two-tone lime green or burgundy logo = sleeve.

https://www.silverstonetek.com/upload/sstedm/nt08-115xp/nt08-115xp_edm_en.pdf

I don't recommend using the SilverStone Nitrogon NT08-115XP's sleeve bearing fan considering its inferior specs when compared to the fans above:

• Maximum motor speed is 3400 RPM, minimum is 1200 RPM.
• Maximum air flow is 15.98 CFM, minimum is 5.64 CFM.
• Maximum static pressure is 0.0956 inch H2O, minimum is 0.0118 inch H2O.
• Sound is rated at 16.5 to 28.98 dBA
• MTTF is rated at 40,000 hours.

The only thing that saves it from being completely outmatched is the static pressure advantage that it has, but I don't think it's worth it in my opinion.



[ignsvn]

Thanks for these slim 80mm fans resources! I know many people are looking for these.

https://www.silverstonetek.com/upload/sstedm/nt08-115xp/nt08-115xp_edm_en.pdf

I don't recommend using the SilverStone Nitrogon NT08-115XP's sleeve bearing fan considering its inferior specs when compared to the fans above:

• Maximum motor speed is 3400 RPM, minimum is 1200 RPM.
• Maximum air flow is 15.98 CFM, minimum is 5.64 CFM.
• Maximum static pressure is 0.0956 inch H2O, minimum is 0.0118 inch H2O.
• Sound is rated at 16.5 to 28.98 dBA
• MTTF is rated at 40,000 hours.

The only thing that saves it from being completely outmatched is the static pressure advantage that it has, but I don't think it's worth it in my opinion.

To be fair people often use it as case fans, where the "smol airflow is better than no airflow" applies.

But yeah I avoid sleeve bearing whenever possible.
