The PCIe flexible riser card has standard features from Li-heat Ltd.

yawacool

Average Stuffer
Original poster
Li-Heat
Silver Supporter
Feb 1, 2017
64
144
www.liheat.com.tw
Can the 57mm cable run a card without an additional power outlet?
As long as the TDP exceeds 35W of the PCIE card
No additional power supply
Are not used
Contains 3M amphenol all do not work
If there are special needs
Contact amphenol
Because of his process
You can replace a larger diameter power cable (for example, 20AWG)

  • Like
Reactions: Ceros_X

blubblob

SFF Lingo Aficionado
Jul 26, 2016
101
123
Unfortunately I don't have the horizontal clearance for a D.Type.

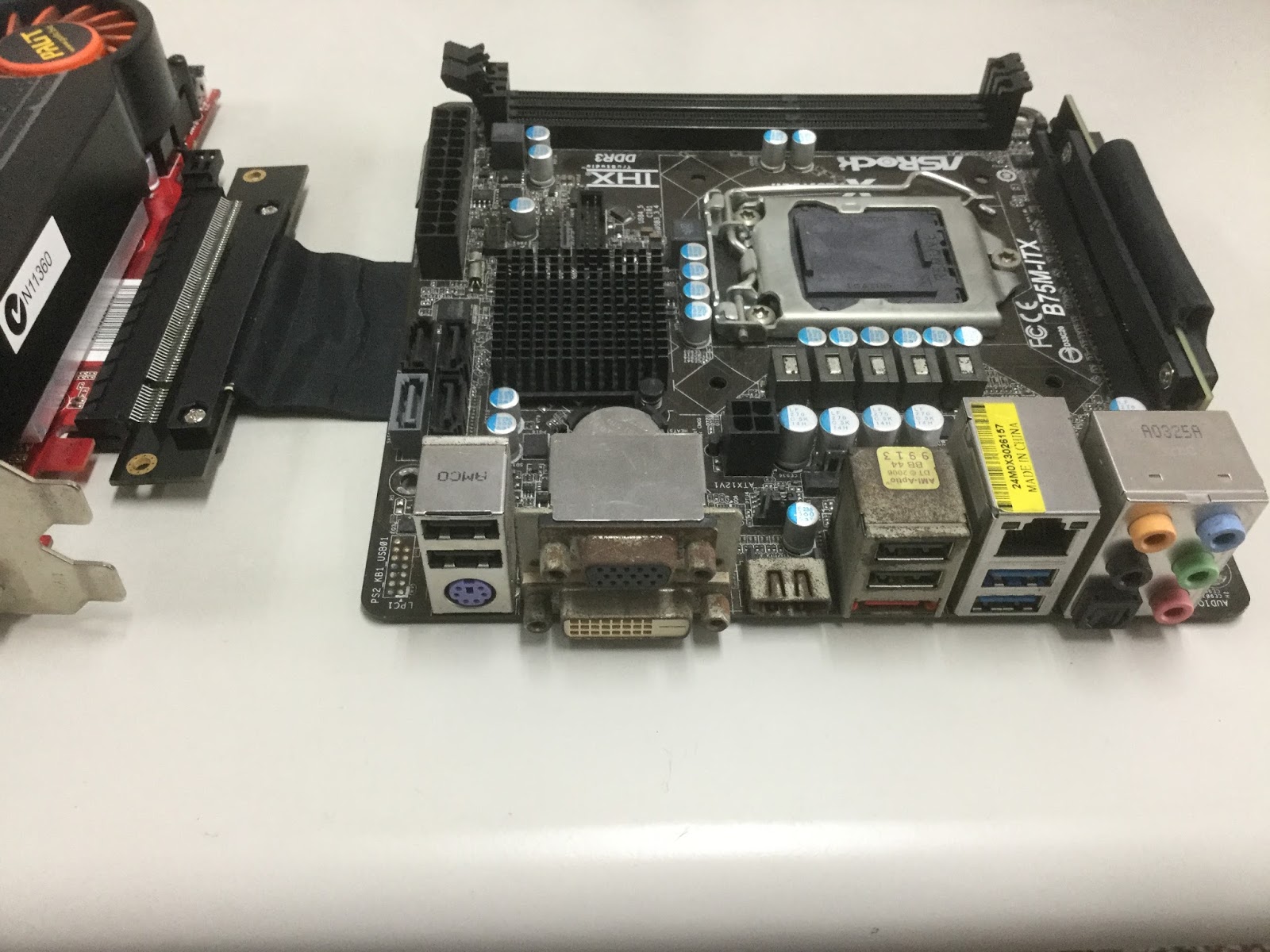

Is there a lot of cable buckling in the setup displayed in the A.type 300mm picture?
From the picture it looks like the mainboard is pretty flat on the ground - which is pretty much everything I'm looking for - but it's hard to tell due to perspective. All the other measurements should theoretically fit going by your schematics.

If you need a lower height
You can select D.type

A.type 300mm


D.type 300mm

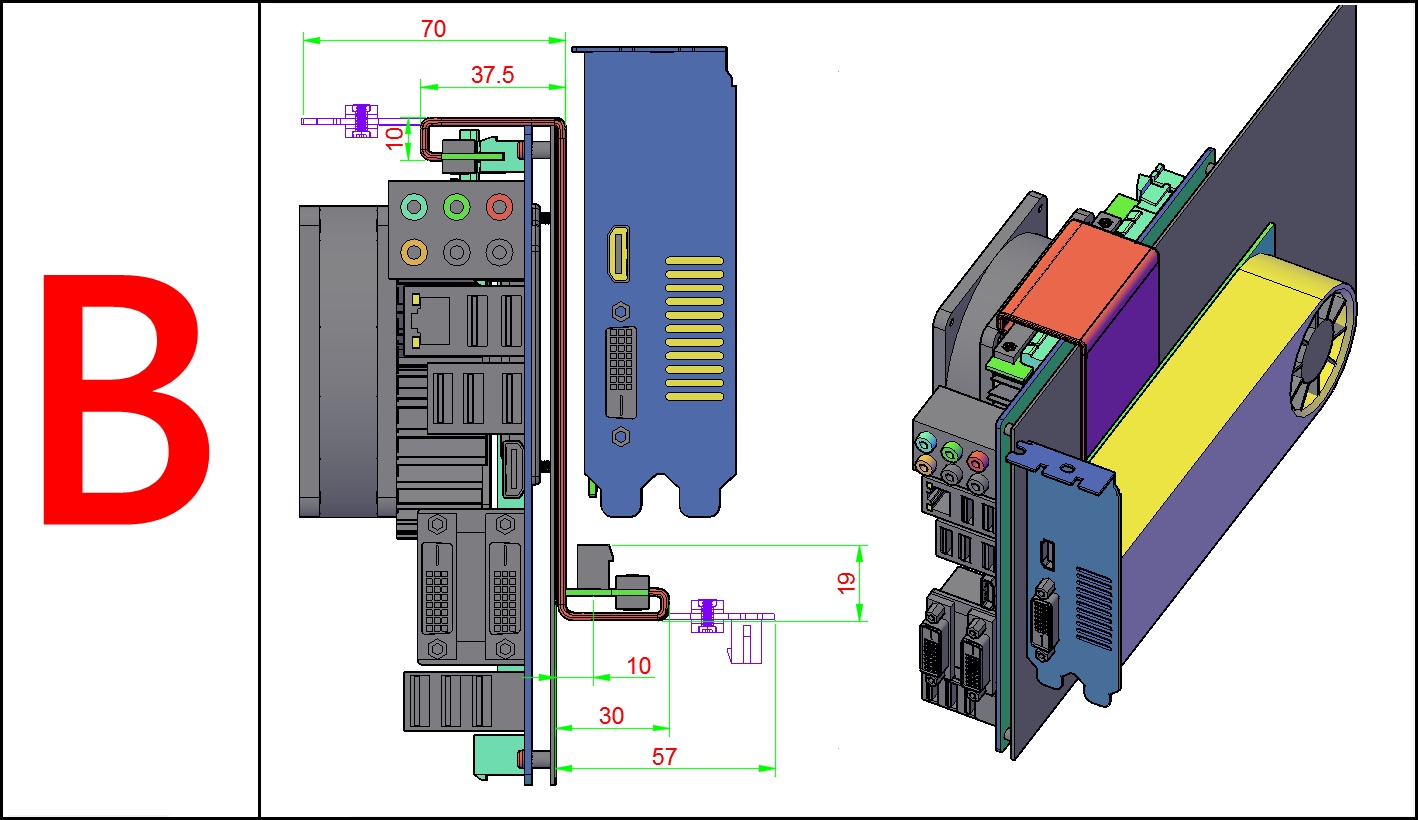

B.type 300mm


yawacool

Average Stuffer
Original poster
Li-Heat
Silver Supporter
Feb 1, 2017
64
144
www.liheat.com.tw
Unfortunately I don't have the horizontal clearance for a D.Type.
Is there a lot of cable buckling in the setup displayed in the A.type 300mm picture?
From the picture it looks like the mainboard is pretty flat on the ground - which is pretty much everything I'm looking for - but it's hard to tell due to perspective. All the other measurements should theoretically fit going by your schematics.

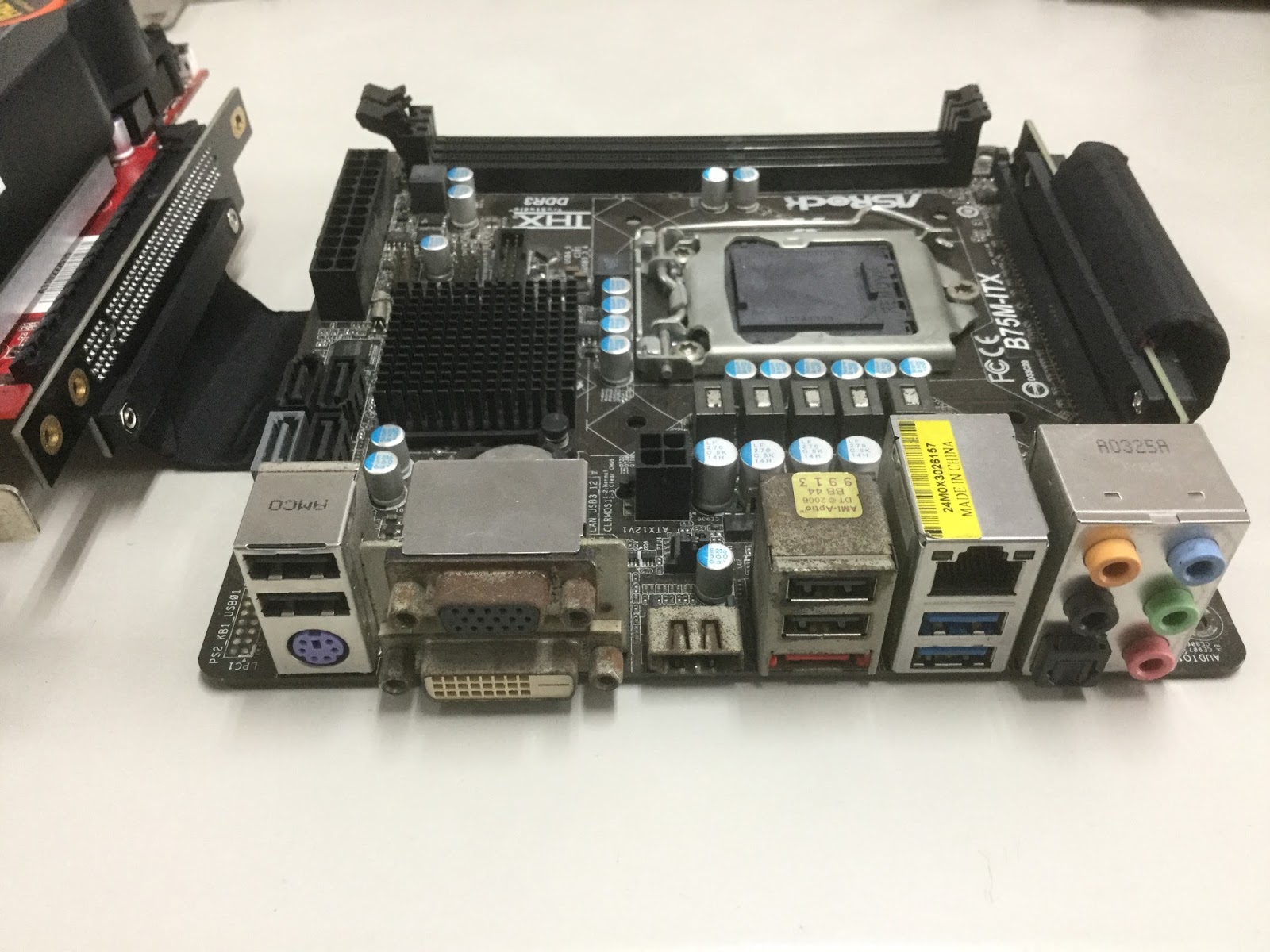

From the photo point of view need to bend twice


yawacool

Average Stuffer
Original poster
Li-Heat
Silver Supporter
Feb 1, 2017
64
144
www.liheat.com.tw
@yawacool

I couldn't find a spec / data sheet for your 30cm risers. Can you please share the interconnect attenuation (loss) and end-to-end jitter values at PCIe GEN3 speeds ?
We do not have such a data report
We only have videos that use GPU tests
(3Dmark11 and Gpu-z)
for reference

Do you believe
We have customers holding our products
Use the signal simulator to test
We asked for a test report with it
It refused to give us
Later customers
Give it the order to us

If you have such a test instrument
Willing to give us free testing
We will provide free samples

The condition is that you must publish the test data here

  • Like
Reactions: Soul_Est

firewolfy

Master of Cramming
Nov 12, 2015
415
822
Just to add to the discussion. I am using one of the new 300mm long 57mm wide cables. IT is the B-type. Has been in my computer for about a week. Running general web stuff, and some moderate gaming. No issues and has been running as gen 3, so good news from my end at this point.


yawacool

Average Stuffer
Original poster
Li-Heat
Silver Supporter
Feb 1, 2017
64
144
www.liheat.com.tw
Just to add to the discussion. I am using one of the new 300mm long 57mm wide cables. IT is the B-type. Has been in my computer for about a week. Running general web stuff, and some moderate gaming. No issues and has been running as gen 3, so good news from my end at this point.
Thank you for using feedback

We are developing pci-e X4 to X4
Width of about 25mm 12V = 2.8A (30AWG * 14)
Support for PCI-E SSD and Thunderbolt 3 (40G) expansion cards.....
Please keep an eye on us


HeroXLazer

King of Cable Management
Sep 11, 2016
708
476
Thank you for using feedback

We are developing pci-e X4 to X4
Width of about 25mm 12V = 2.8A (30AWG * 14)
Support for PCI-E SSD and Thunderbolt 3 (40G) expansion cards.....
Please keep an eye on us
Where should I put the eye? Do you have an address? :)

Last edited:

Colinreay

Cable-Tie Ninja
Silver Supporter
Aug 28, 2016
187
425
Hi, @yawacool, I had a question about the mounting hole placement for the Female socket of the riser cable that plugs into the GPU. Is there a drawing for it that shows dimensions?

  • Like
Reactions: yawacool

Phuncz

Lord of the Boards
Editorial Staff
Moderator
Gold Supporter
May 9, 2015
4,642
4,193
Very promising ! I've collected a few non-working PCIe extenders by now, this does interest me.

  • Like
Reactions: yawacool
