The PCIe flexible riser card has standard features from Li-heat Ltd.

Colinreay

Cable-Tie Ninja
Silver Supporter
Aug 28, 2016
184
414
Hi @yawacool, I have another question/request if possible (if not, I fully understand!) Are there 3d models anywhere of the various connectors (like A type, B type, etc.) I modeled my own based off of the diagrams you posted, but would feel much more comfortable with 3d models that are exact in all dimensions.

  • Like
Reactions: Ceros_X

yawacool

Average Stuffer
Original poster
Li-Heat
Silver Supporter
Feb 1, 2017
64
144
www.liheat.com.tw
Hi @yawacool, I have another question/request if possible (if not, I fully understand!) Are there 3d models anywhere of the various connectors (like A type, B type, etc.) I modeled my own based off of the diagrams you posted, but would feel much more comfortable with 3d models that are exact in all dimensions.
Hi @Colinreay

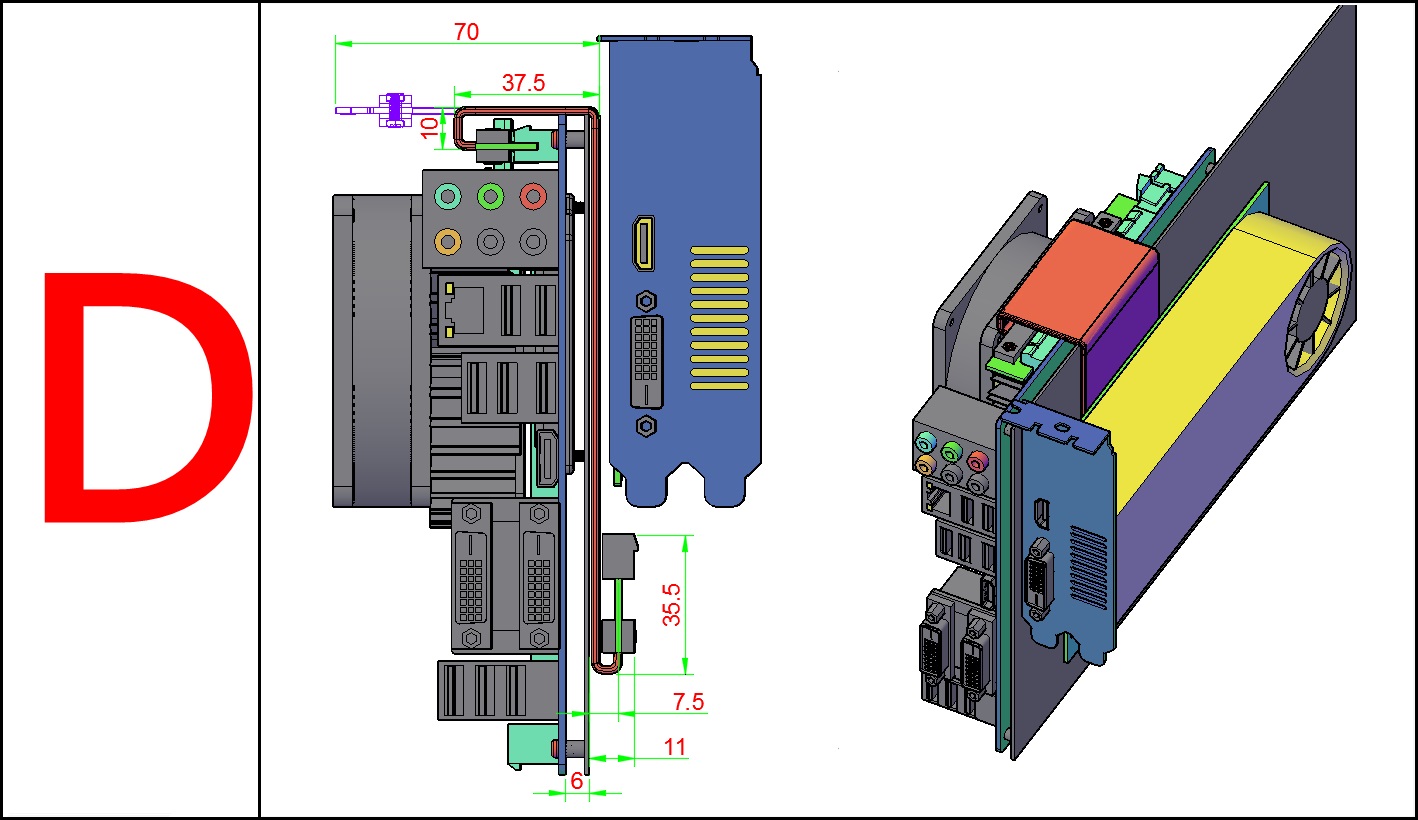

We only simple graph
Because we do not have professional drawing
So to the actual product shall prevail
Do you want such a file?

  • Like
Reactions: Colinreay

yawacool

Average Stuffer
Original poster
Li-Heat
Silver Supporter
Feb 1, 2017
64
144
www.liheat.com.tw
To update to the first page
Technical information update
In fact,PCIe this interface,its pin contains three voltage sources,and SMBus、JTAG、TRST #、WAKE # ... and so on the control circuit,

And in addition to the performance of some of the performance,PCIe interface products,have to comply with the electrical safety capacity and including EMI control and other legal requirements

So PCIe extended adapter card PCB,its two sides should be used for wiring,or interface,the pin can not be a complete docking

In this way,not only easily lead to many problems of performance instability,but also cause a lot of controversial eventssuch as electrical safety capacity failed

(Further verification: Please search Wikipedia、intel、and AWG safe ammeter、and high-speed cable EMI shielding type、refer to USB)
Fortunately, according to our patented technology produced by PCIe extension adapter,its PCB is a two welding surface,

PCIe x16 a total of 180 of the wiring (AWG # 30),which part of the x1 52 lines,12 for 12V = 2.4A

And its wiring position,and the internal cable of the flat cable,all of the EMI shielding material to cover up,

So we have a complete interface specifications and GEN3 some of the performance,and to comply with electrical safety capacity and EMI control requirements

In particular,our cable width is only 70% of the interface size (such as x16 = 57mm),but also the flexibility to bend the bifurcation

This technical feature is not only easy to identify,but also support the smaller spacing of the interface pin,replace M.2 or sff-8639 and other secondary interface,

This is a bifurcated cable that can no longer be spaced, and can not be done with cables that are shielded by high and low dielectrics (such as HDMI).

(Patent Chinese Search: CN 103579857 B / English Search: US 9,215,834 B2)
Our finished product specifications and prices

Technical comparison
Interestingly,as long as the PCIe extension adapter card wire,all welded on the side of the PCB,at least 35% less manufacturing costs,but why the connector industry leader Amphenol and 3M's R & D team,they are not Can you think of this good idea?

Perhaps they already knew that the practice would violate the hardware agreement (x16 minimum 25w) and electrical regulations,this product can not be sold,

If this is true, then control the pin is not wired, but marked the PCIe interface product is a fake, you want to return is no reason。

(Mark the wrong caserefer to the news http://tw.weibo.com/nike/4086235817525364)

Last edited:

james4832

Minimal Tinkerer
Sep 18, 2017
3
1
How much would shipping to New Zealand be? also, would I be able to have access to the 3d model for the 30mm B type riser you mentioned earlier?


yawacool

Average Stuffer
Original poster
Li-Heat
Silver Supporter
Feb 1, 2017
64
144
www.liheat.com.tw
How much would shipping to New Zealand be? also, would I be able to have access to the 3d model for the 30mm B type riser you mentioned earlier?
Shipped to New Zealand
Post office economy more than 14 working days 6 $
Post office standard about 10 ~ 14 working days 13 $
EMS about 4 to 6 working days 21 $

We do not have 30mm B
We have 100mm 150mm ..... 500mm B
