According to the principle of high-speed differential signaling
PCIe I / O interface, x16 is = 164pin;
So do not want to be the victim of inferior products,
Do not buy the total number of wiring, or power specifications marked unclear products,
Detailed introduction to PCIE
https://en.wikipedia.org/wiki/PCI_Express
Figure source
https://www.pcper.com/reviews/Graphics-Cards/Power-Consumption-Concerns-Radeon-RX-480
For complete information, please search
"7851. PCIe_designGuides.pdf" on pages 19 and 20"
Less than 164PIN
So the performance is problematic
And the power supply specifications are too low
There is also the risk of burning
Can immediately improve safety
Reaching a minimum of 25W
If he finished the job
Will be our recommended
Another solution
--------------------------------------------------------------------------------------------------------------------------------------------
So we recommend
https://smallformfactor.net/forum/threads/how-to-choose-a-pcie-flexible-riser-card.1586/

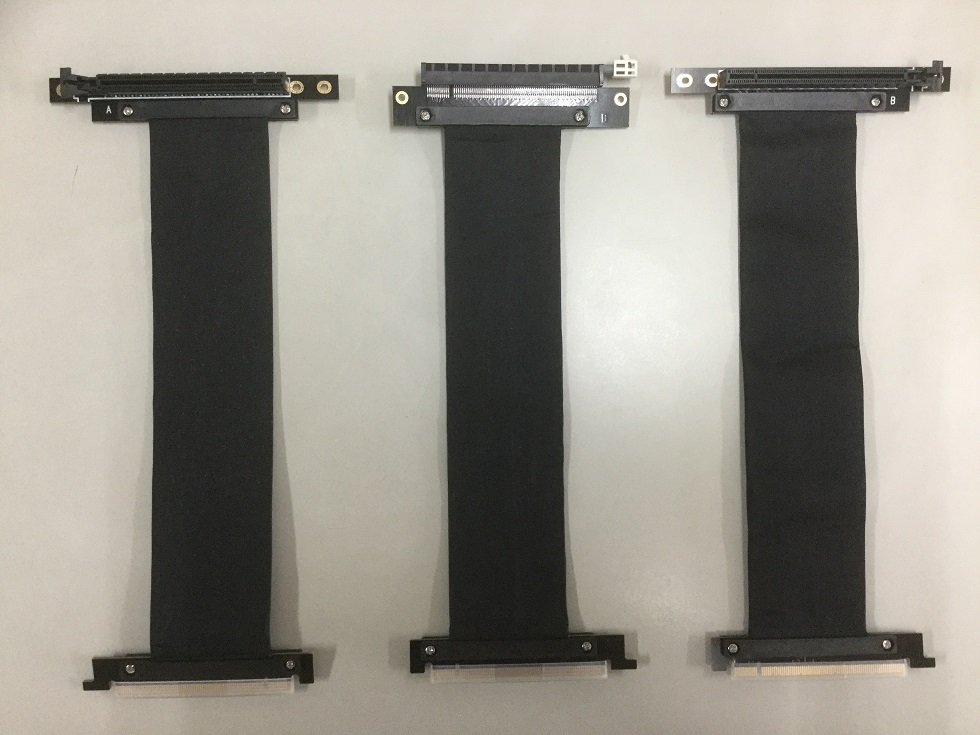

The PCIe flexible riser card has standard features
1. Integrated flat shielded cable with x16 total number of wires = 180pin (AWG # 30)
2. 12V = 2.4A (AWG # 30 * 12); 3.3V = 1.4 + 0.4A; maximum support 35W of the TDP value
3. 1.8 mm in thickness and 57 mm in width (Flexibility is the best)
4. Welding feet and power lines are in the EMI shielding layer inside
http://liheat.com.tw/
Solutions Board Option I
PCIe I / O interface, x16 is = 164pin;
So do not want to be the victim of inferior products,
Do not buy the total number of wiring, or power specifications marked unclear products,
Detailed introduction to PCIE
https://en.wikipedia.org/wiki/PCI_Express
Figure source
https://www.pcper.com/reviews/Graphics-Cards/Power-Consumption-Concerns-Radeon-RX-480

For complete information, please search
"7851. PCIe_designGuides.pdf" on pages 19 and 20"
Case 1:Less than 164PIN
So the performance is problematic
And the power supply specifications are too low
There is also the risk of burning

Case 2:
Some wires do not cover EMI
Power supply specifications are too low
It is recommended to use 28AWG (2651) to improve safetySome wires do not cover EMI
Power supply specifications are too low
Can immediately improve safety
Reaching a minimum of 25W
If he finished the job
Will be our recommended
Another solution

--------------------------------------------------------------------------------------------------------------------------------------------
So we recommend
https://smallformfactor.net/forum/threads/how-to-choose-a-pcie-flexible-riser-card.1586/
The PCIe flexible riser card has standard features
1. Integrated flat shielded cable with x16 total number of wires = 180pin (AWG # 30)
2. 12V = 2.4A (AWG # 30 * 12); 3.3V = 1.4 + 0.4A; maximum support 35W of the TDP value
3. 1.8 mm in thickness and 57 mm in width (Flexibility is the best)
4. Welding feet and power lines are in the EMI shielding layer inside
http://liheat.com.tw/

Solutions Board Option I
Because of the patented technical means, the total number of 16x wires is ≒ 181 pin; 3M ™ Twin Axial with GEN4 is supported by silver plating;
Some wires do not cover EMI
http://www.digikey.com/catalog/en/partgroup/pci-express/30025
Solutions Board Option IISome wires do not cover EMI
http://www.digikey.com/catalog/en/partgroup/pci-express/30025

(2) .16x the total number of wires = 164pin : 12V maybe=2.5A; 1M length can be customized, the cable can be twisted into a beam of Amphenol
Some wires do not cover EMI
http://www.amphenol-ast.com/v3/cn/product_view.aspx?id=231
Some wires do not cover EMI
http://www.amphenol-ast.com/v3/cn/product_view.aspx?id=231
