QinX submitted a new resource:

HDPLEX HiFi 250W DC-ATX (nanoATX Series) - a high-end 16V to 24V DC input board for motherboards

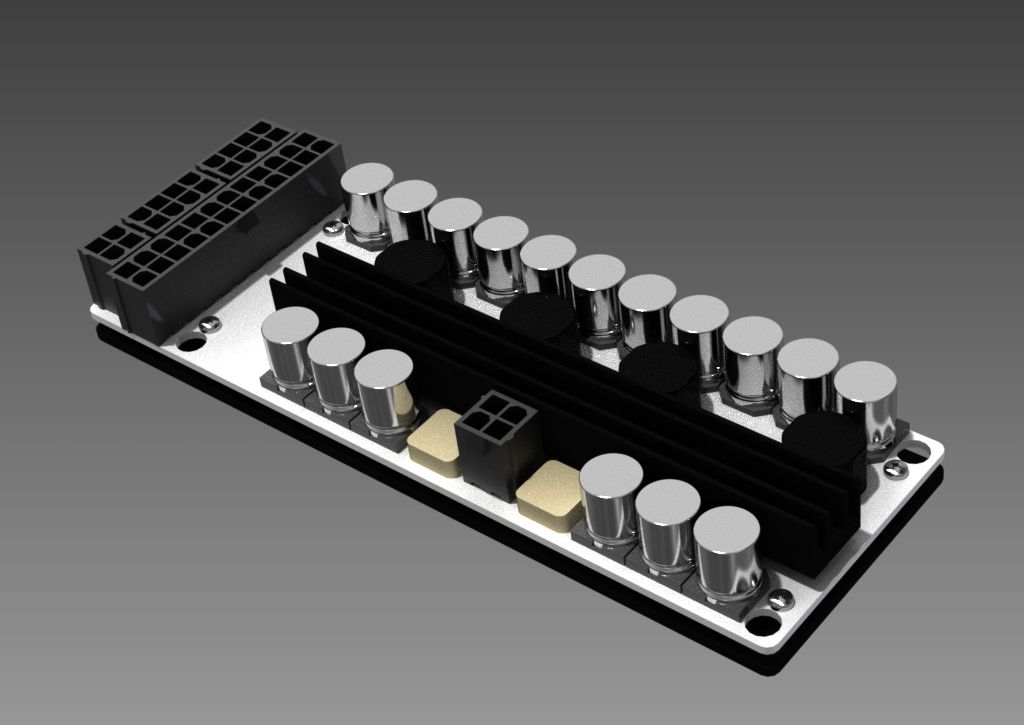

This is a model of the HDPLEX HiFi 250W DC-ATX (nanoATX Series). all components have be either measured with digital calipers, capacitors, inductors and chips. or imported, molex Mini-Fit Jr. connectors.

The chips that are underneath the heatsink are also modeled.

The board is designed for a 250W passive load, but can go up to 400W with adequate airflow over the heatsink. In theory with this model a waterblock could be modeled for it.

View attachment 79

Read more about this resource...



[QinX]

QinX updated HDPLEX HiFi 250W DC-ATX (nanoATX Series) with a new update entry:

Added Sketchup Model

Added a Sketchup Model.
Geometry imported from 3D CAD model, please excuse and geometric errors caused by importing.

Read the rest of this update entry...



[confusis]

Epic work



[jeshikat]

You wouldn't happen to have a model of the 160W version would you?



[QinX]

I don't have one, but looking at the images it shouldn't be terribly hard to make it if you'd like me to.



[jeshikat]

Nah, that's ok. I'm going to get one for a project so I can model it.



[Soul_Est]

Thanks @QinX ! This is just what I was looking for!



[GuilleAcoustic]

Does someone have the exact size of the HDPLEX 250W heatsink ? I'd like to know if any of those MOSFET copper heatsink would fit : Enzotechnology

What is the real surface that needs to be covered (whole length of the original heatsink or smaller) ?

Note: I have no access to CAD tool at hospital. I guesstimate it to around 100x10, but precise size would help me plan my design.



[jeshikat]

111x13mm

Edit: According to the model.



[GuilleAcoustic]

111x13mm

Edit: According to the model.

Thank you Sir !



[Soul_Est]

Does someone have the exact size of the HDPLEX 250W heatsink ? I'd like to know if any of those MOSFET copper heatsink would fit : Enzotechnology

What is the real surface that needs to be covered (whole length of the original heatsink or smaller) ?

Note: I have no access to CAD tool at hospital. I guesstimate it to around 100x10, but precise size would help me plan my design.

Having looked at the page, I'd say that the MOS-C10 and MOS-C10-LE will fit but are a little on the small side at 10mm (L) x 10mm (W). Having looked over that gallery for the HDPLEX 250W, I believe you can use either the BMR-C1 or BMR-C1-LE at 14mm (L) x 14mm (W).



[Bustin]

Hey quick question, how close is this model to the 300W Model?



[DASBOOT]

Pointless models now, as all are discontinued for HDplex GaN, nothing else will be produced; to date.
