Aibohphobia submitted a new resource:
HDPLEX 160W DC-ATX - a mid-range 16V to 24V DC input board for motherboards
Read more about this resource...
HDPLEX 160W DC-ATX - a mid-range 16V to 24V DC input board for motherboards
View attachment 139

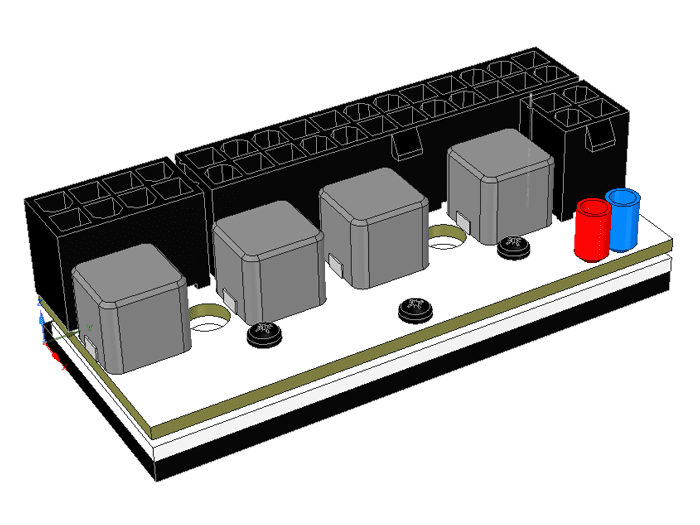

STP and SketchUp models of the HDPLEX 160W DC-ATX (nanoATX Series).
Measured with calipers, should be accurate to within 0.5mm. Screws and Molex connectors imported from @QinX's model of the 250W DC-ATX.
Read more about this resource...
