Aibohphobia submitted a new resource:

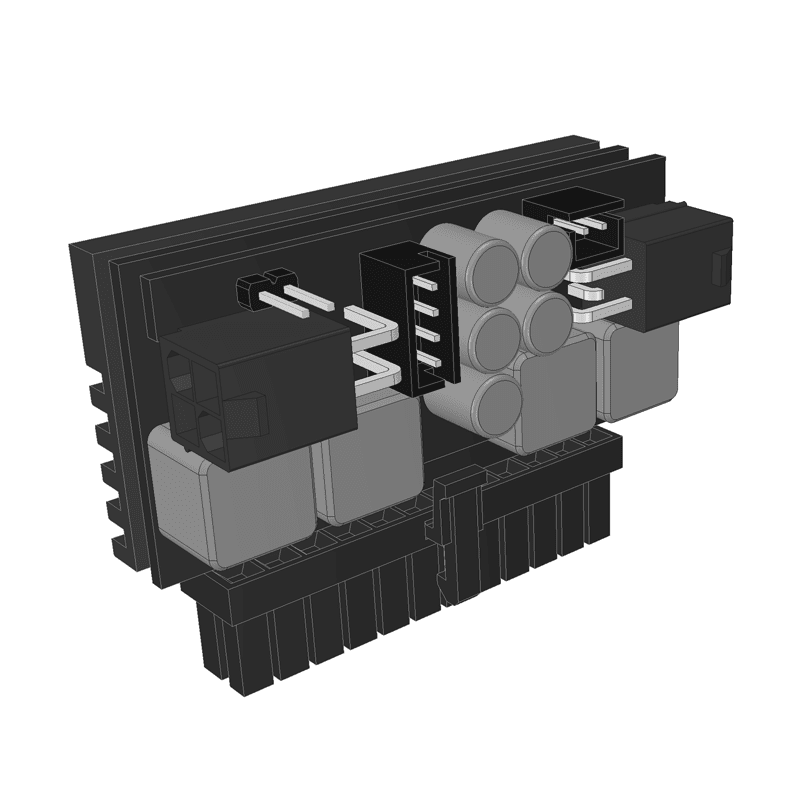

HDPLEX 160W DC-ATX (v4) - Direct-plug DC-ATX from HDPLEX

View attachment 198

STP and SketchUp models of the HDPLEX 160W DC-ATX (v4).

Measured with calipers, should be accurate to within 0.5mm. Screws and Molex connectors imported from @QinX's model of the 250W DC-ATX.

Read more about this resource...
