Aibohphobia submitted a new resource:

PCIe slots - x16 and x1

View attachment 95

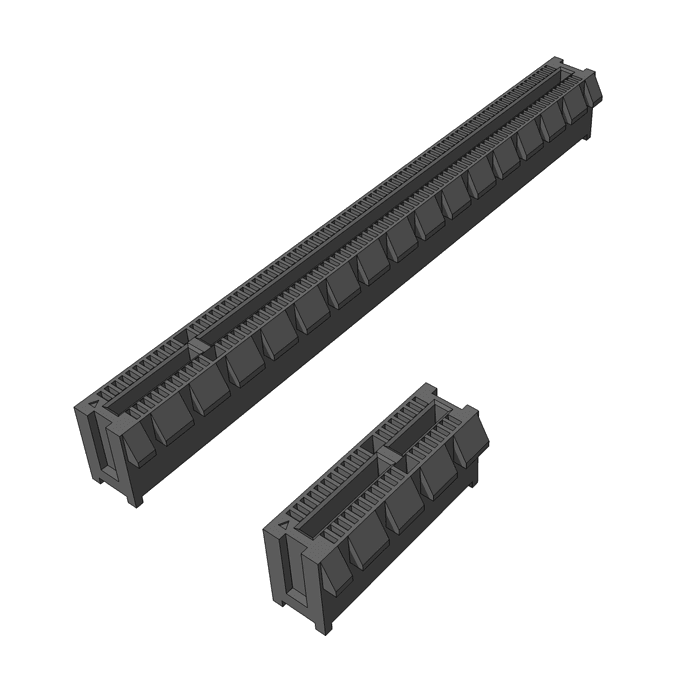

PCIe x16 and x1 slots

Editor's note: I did a quick check and they look accurate but I didn't compare it against the official spec.

Read more about this resource...



[QinX]

Hmm, I don't see a real use for these. you could get the manufacturer accurate ones from the likes of molex and samtec.
http://www.molex.com/molex/products/group?channel=products&key=pci_technology
https://www.samtec.com/connectors/edge-card/pcie



[jeshikat]

Good point, it's more for SketchUp users.
