Enclosure Custom front and top panels for FormD T1 v2 2022-10-02

[stanleyguan]

stanleyguan submitted a new resource:

Custom front and top panels for FormD T1 - Ventilated front panel, and top panel with slots for greater ventilation than holes

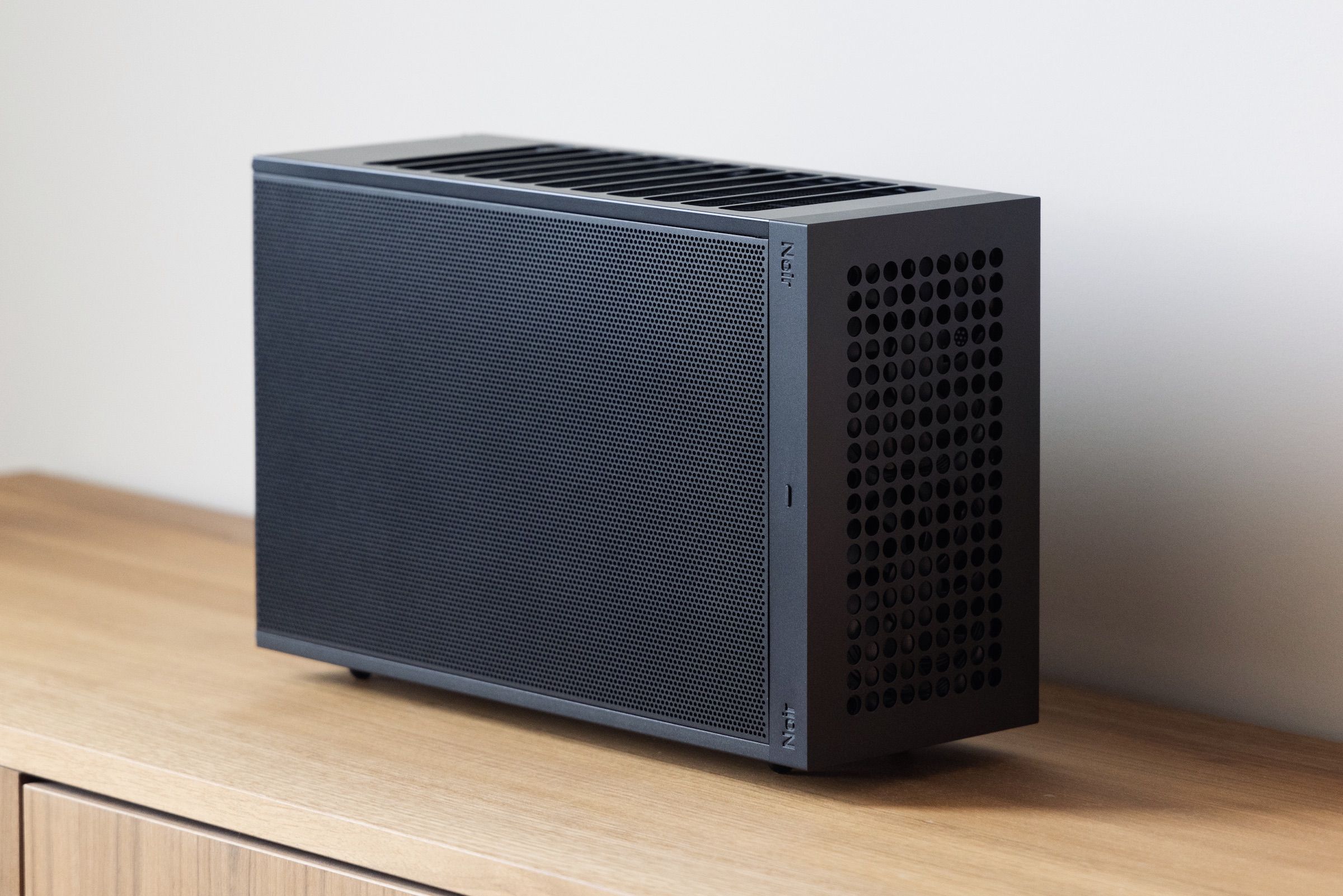

View attachment 1993

Front panel

View attachment 1994

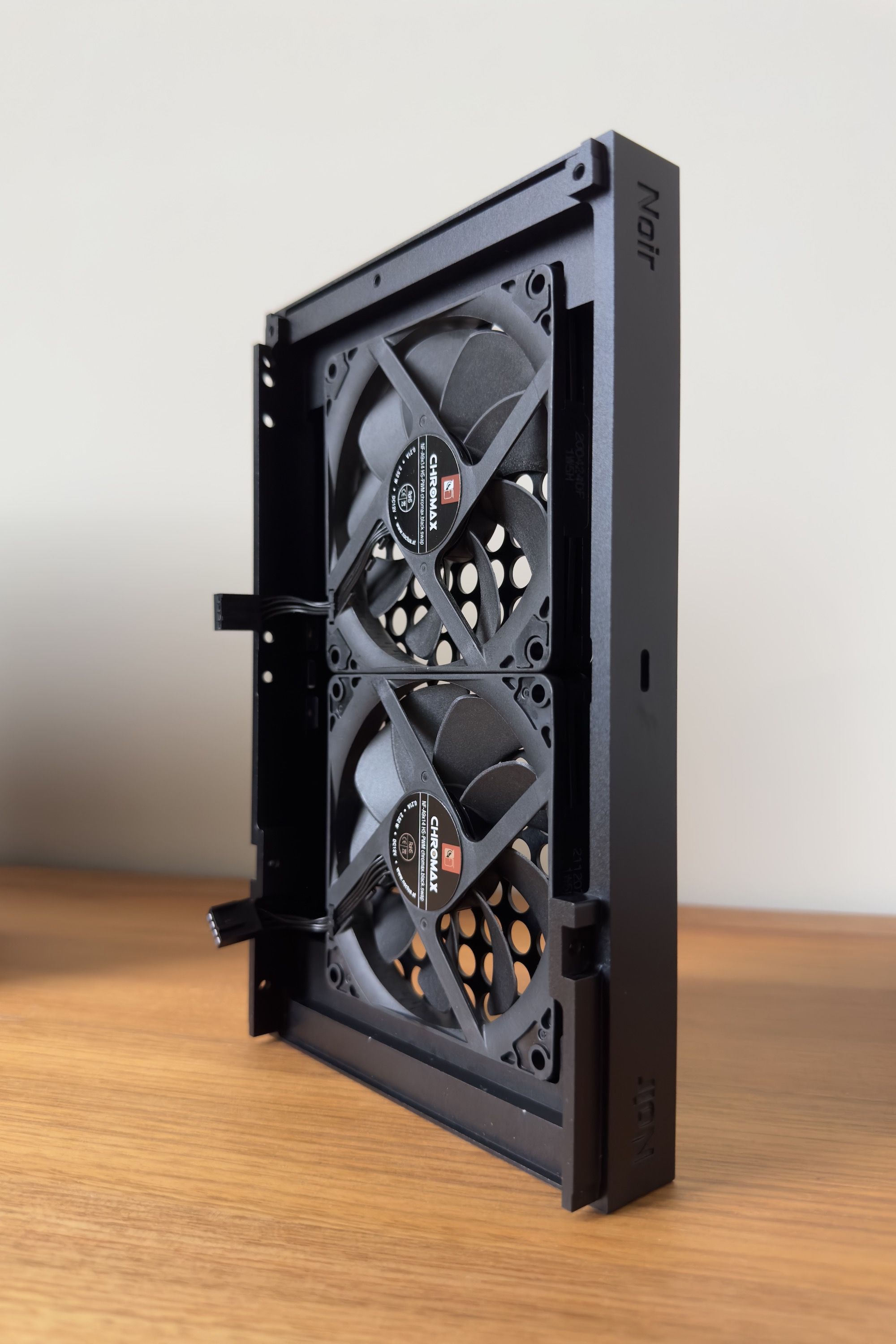

The ventilated front panel is 15mm thicker than the original front panel to allow for two thin 92mm fans. The mounting of the fans is achieved by adding some squishy materials (e.g. 1-2mm thick thermal pad / thermal adhesive) between the two fans and then squeezing the fans into place. It should hold the fans quite firmly in the designated cutout without the need of screws...

Read more about this resource...



[aesubs]

mind if I ask what the water-cooling components are for this build? specifically your pump and cpu block?



[ghutz]

I printed it in SLS, works quite well. Thanks
