Grackle submitted a new resource:

ATX Motherboard and Cards - Solidworks, step, and iges models.

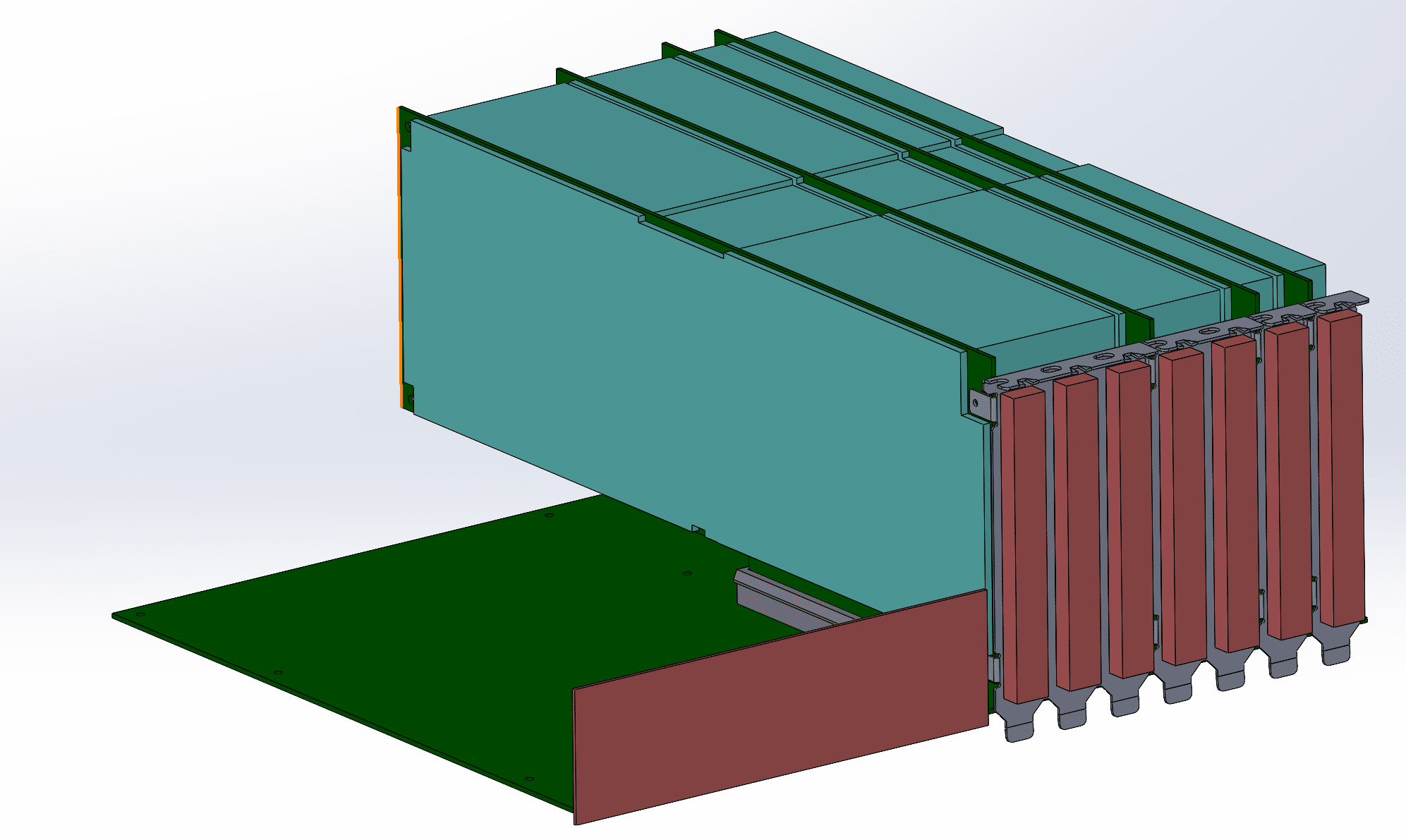

View attachment 3380

ATX motherboard with PCIe slots, plus PCIe cards in triple, double, and single width configurations. Corrected and verified by overlaying jeshikat's model on top. Thank you for that!

I made this because I wanted a case design aid in solidworks format. I used maker edition, which means it can only be opened with maker edition. I also saved it as step and...

Read more about this resource...
