Aibohphobia submitted a new resource:

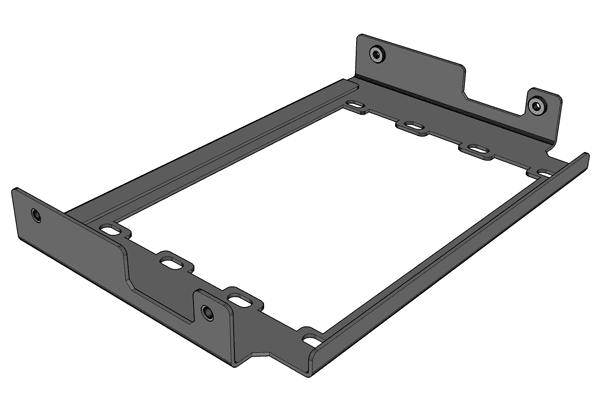

NCASE M1 SFX-L bracket - Custom bracket to mount a SFX-L PSU like the stock ATX bracket


A custom bracket I designed to mount a SFX-L power supply in the NCASE M1 in a similar position and orientation to how the stock ATX bracket. The idea is that with the SFX-L PSU mounted with the fan facing rearward the modular connectors would just clear the end of a 10.5" card like the reference GTX 980.

View attachment 14

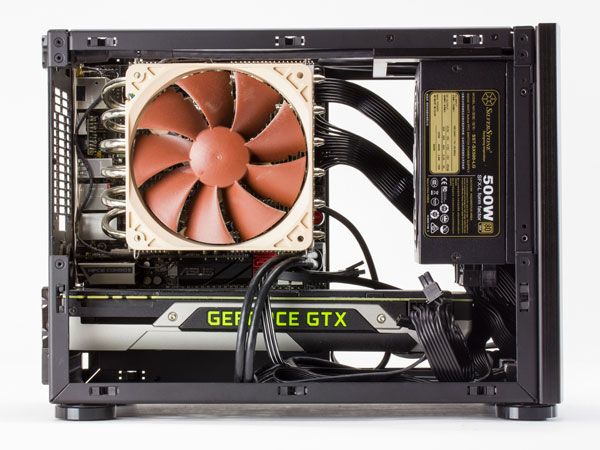

Here's the prototype installed
There wasn't enough interest to do a production run of these so here...
Read more about this resource...


indybonez

Cable Smoosher
Jan 19, 2019
10
2
Hi, I'm looking at getting this printed, I was just wondering what units the dimension were in when you made it? mm or inches? Thanks
