Enclosure Mini-STX motherboard tray v0.1

[jeshikat]

Aibohphobia submitted a new resource:

Mini-STX motherboard tray - Simple model of Mini-STX tray

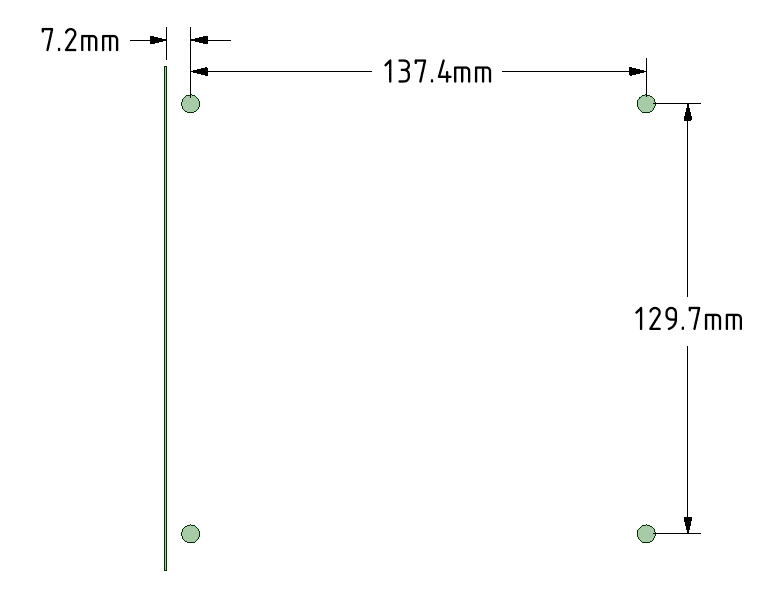

Model of the motherboard tray for the Mini-STX form factor. Based off measurements of the ASRock DeskMini 110.

View attachment 172

View attachment 173

Since these are not based off official specs, please double-check all measurements against an actual Mini-STX board before spending a bunch of money on a prototype case.

Read more about this resource...



[warfreak131]

Hey, necro almost a year to the day! Thanks for providing these, I've been searching for the official Mini STX specifications and I couldn't find anything. I saw the STX 160 you made, and it's awesome, any more plans to do anything with this form factor?



[confusis]

Hey, necro almost a year to the day! Thanks for providing these, I've been searching for the official Mini STX specifications and I couldn't find anything. I saw the STX 160 you made, and it's awesome, any more plans to do anything with this form factor?

Aibohphobia is on an extended leave of absence, and hasn't logged in in six months.



[changguangyu]

Very useful!
