Mini-Splash, about a Gallon water cooled SFF gaming PC

Discussion in 'Build Logs' started by Goatee, Dec 8, 2018.

  1. Goatee

    Goatee Average Stuffer
    Thread Starter

    I have decided to crack on with another build after my last one ended so unsatisfactorily.

    Rather than continue with attempting to passively cool my gaming PC I will take the simpler option and watercool. My plan is to end up with a small, compact fully watercooled PC. I am hoping to stay under a completely arbitrary 1 gallon limit. (1 UK gallon is ~4.55L).

    So I start out with a sheet of 3mm aluminium

    [​IMG]

    With a bit of drilling, some tapping and some amazing little cubes it can stand up all on its own.

    [​IMG]

    Some measuring, a bit more drilling and tapping plus some stand-offs may give you an idea of whats coming up shortly.

    [​IMG]

    Ahhh, look a little donor board for playing around with.

    [​IMG]

    Isnt it soo pretty.

    [​IMG]
    [​IMG]

    Why are you taking the heatsink off you may ask?

    [​IMG]
    [​IMG]

    Its now all starting to take shape. However I dont like the fact the ram will block all airflow across the board.

    [​IMG]

    So its time to swap the donor board for an alternative and we have something a bit more interesting! Obviously as we are talking about liquid volumes we need some water cooling in there.

    [​IMG]

    Added to the board is a CPU block / pump from a Fractal Design Kelvin CLC.

    If im using a CPU block I also need a radiator! Given the size of the build I will be using a dual 80mm rad.

    [​IMG]
    [​IMG]
    [​IMG]

    And thats where I am up to.

    I have a GPU waterblock in the post and the rest of the pieces for the case is on order.

    Questions, thoughts, feedback?

  2. owliwar

    owliwar Master of Cramming
    Lazer3D

    first, I've been thinking about 2x80 watercooling setups recently so nice! I'm subbed

    is the hdplex 400w necessary with this build? are you planning on adding a gpu later?
    also how tall is that fractal cpu block?

  3. Goatee

    Goatee Average Stuffer
    Thread Starter

    Its a lovely little radiator.

    It will be needed to power the 1070 that's being added as soon as the water block arrives from China. I'm wondering how well the dual 80mm will cool the 1070 but I guess we will find out at some point. CPU is a i7-7700T, so only adds a little heat over the GPU.

    [​IMG]

    Block sits ~45mm off the board.

    [​IMG]

    330ml can for scale ;)

    Mtthwmths and owliwar like this.
  4. owliwar

    owliwar Master of Cramming
    Lazer3D

    oh nice! cant wait for this one :)
    the use of thin itx is a really good choice for this then as well because of the i/o shield, good move
    Thanks!

  5. Aux

    Aux Average Stuffer

    you are going to use the CPU block / pump from a Fractal Design Kelvin CLC to push water through the graphics card as well?

  6. bichael

    bichael Trash Compacter

    Cool!
    Pump will be fine, it uses the alphacool dc-Lt which I used before with a 4790 and r9 290, with quick disconnects as well.
    Rad I think should be okay (I remember seeing 780's on single 120's) just nothing special in terms of temps.

  7. Goatee

    Goatee Average Stuffer
    Thread Starter

    Yep, that’s the plan. I understand the pump performs pretty well when running at about 90%.

    That’s what I’m hoping. I’m not expecting arctic temperatures, so hopeful it will turn out ok. No room for quick disconnects here!

    Mtthwmths likes this.
  8. Goatee

    Goatee Average Stuffer
    Thread Starter

    Some more work today using some HAD (Hardboard Aided Design).

    First thing was to add a back plate.
    [​IMG]

    Then cut a PCIE slot behind the motherboard tray.
    [​IMG]

    I need some way of getting the PCIE cable through the main "spine plate" so I added some stand-offs and drilled and expanded (not shown) to allow the PCIE x4 cable to pass through.
    [​IMG]

    I drilled a secondary hole to bring the 19V power off the board. The 6 pin connector is trimmed to allow the cable to bend up into the hole closer to the PSU. I will sleeve this in future.
    [​IMG]

    Here is a few more shots of where I ended up for the day.
    [​IMG][​IMG]

    owliwar likes this.
  9. Goatee

    Goatee Average Stuffer
    Thread Starter

    The actual base plate I use will be slightly larger (3mm) wider than the one I am showing, but at the front not the back.

    So here is update 3!

    I put my single slot GPU in there to show what I'm trying to achieve. My expectation is that once the block arrives I can put it on this GPU to get the single slot I need. Nothing has really progressed on the build just some multi angle shots.

    I will be swapping out the long x4 for a shorter cable thanks to @aquelito

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  10. HZCH

    HZCH Chassis Packer

    Oh my! There I sub!

    el01 likes this.
  11. SashaLag

    SashaLag SFF Lingo Aficionado

    is here a Project Binky Fan?

    anyway, really curious about your work!

    Mtthwmths, Goatee and el01 like this.
  12. Scott

    Scott Cable Smoosher

    Have you been able to run the GTX 1070 off the thin mITX PCIe slot? I have some memory of reading about a lower power limit on thin mITX PCIe slots. Could be a problem if I am remembering correctly. I also could be totally wrong.

  13. Goatee

    Goatee Average Stuffer
    Thread Starter

    The riser is powered. I will need to run the power (from the hdplex). I have a shorter riser cable coming, so will likely solder that up when it arrives.

    Mtthwmths likes this.
  14. Aux

    Aux Average Stuffer

    There is a discussion here from 2016 on SFF,

  15. Goatee

    Goatee Average Stuffer
    Thread Starter

    You reminded me I hadn’t caught up on Binky for a while. 3 episodes later and I was late to bed.

    Mtthwmths, NinoPecorino and SashaLag like this.
  16. Aux

    Aux Average Stuffer

    and some other links

    Goatee likes this.
  17. aquelito

    aquelito King of Cable Management
    Silver Supporter Piccolo PC

    @Goatee : riser shipped ! I'll send you the tracking number later on.

    Indeed, the +12v tracks of these risers are not cut.

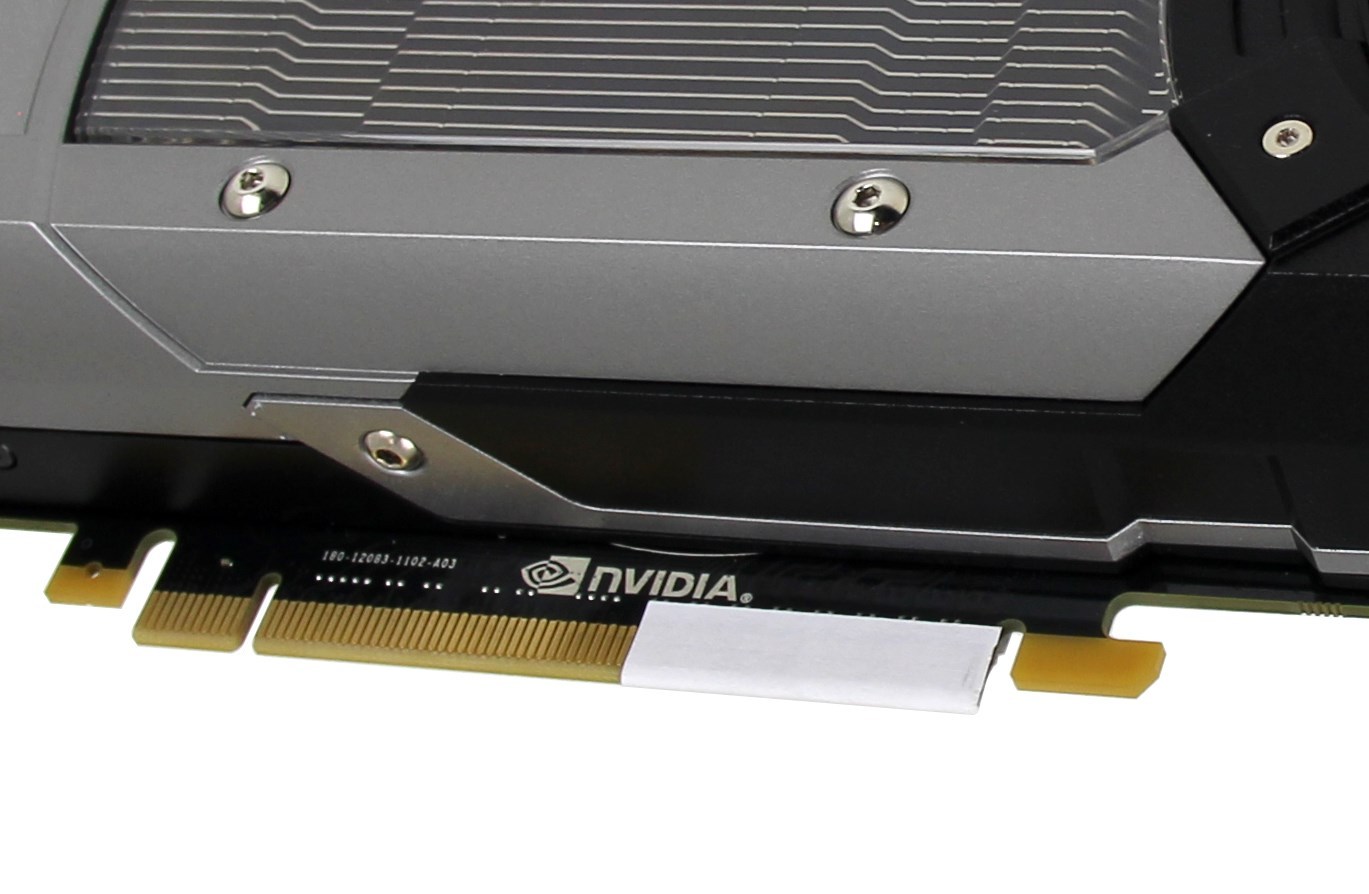

    You might try to cover the +12v pins with some insulating material to see if that change anything.

    Anyway, glad to see an other watercooled thin-mini ITX build !

  18. Goatee

    Goatee Average Stuffer
    Thread Starter

    Thanks @aquelito

    I'm not that worried about the 75W coming from the x4 board connector (25W) and hdplex (50W). The sata power connection is only good for 50W on the 12V rail from the sata spec. But I might have a play around at some point.

    Mtthwmths likes this.
  19. GuilleAcoustic

    GuilleAcoustic Chief Procrastination Officer
    Moderator LOSIAS

    #19 GuilleAcoustic, Dec 11, 2018
    Last edited: Jan 7, 2019
    Subbed, will help me with my thin ITX build :D

    Mtthwmths and TinyAudio like this.
  20. Goatee

    Goatee Average Stuffer
    Thread Starter

    So update 4! I finished building the main external frame using some more HAD.

    [​IMG]

    Its accurate to around 2mm in terms of the final size, which is enough for what I'm doing at the moment.

    I have noticed a problem with where I plan to put the GPU. The inlet side of the GPU does not make it easy to run from the outlet of the CPU pump block.

    [​IMG]

    This will require me to have a think about routing the tubing to avoid cross over, I will worry about that in the next update. What do you think could be going in the section in white? 40mm x 58mm x 181mm ..........

    [​IMG]
