Gotmachine submitted a new resource:

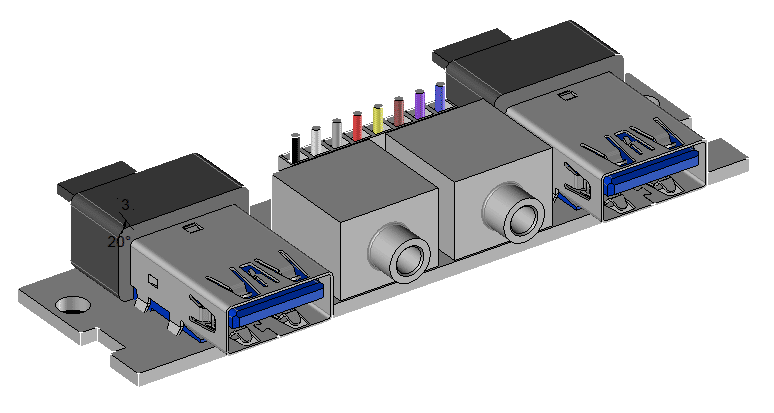

Front panel PCB model - 2 x USB 3.0 + HD audio IN/OUT

Small front panel PCB with 2 USB 3.0 ports and 3.5mm jacks in/out
Modeled from a part available on AliExpress.
Vendor is "PASTOP Official Store" see references in attached txt file.
Dimensions are exact according to the schematic provided by the vendor.
View attachment 821
